HANDRAIL COMPONENTS

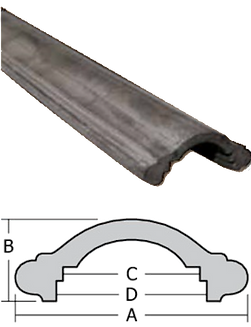

Steel Handrails
Extra Wide Style
>>
>>
>>
>>
19 ft. approximate length
Wide series for 1-1/2" channel, flat or tube
Commercial mild steel
Weighs 42 lbs.
A. 2-1/8"
B: 3/4"
C: 1-1/4"
D:1-1/2"
ITEM#
MCR112

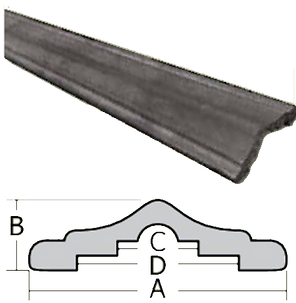

Steel Handrails
Standard Style
>>
>>
>>
>>
20 ft. approximate length
Fits 1" channel or tubing
Commercial mild steel
Weighs 25.4 lbs.
A. 1-19/32"
B: 7/16"
C: 1/2"
D:1"
ITEM#
MCR1
Cast Iron Right Channel
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
>>
>>
Attach to laterals shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI75RCS
MCR1
CI401HR
MCR1
CI75RCW
MCR112
1"
1"
1-1/2"
Cast Iron
Ductile Iron
Cast Iron
Cast Iron Right Lateral
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
>>
>>
Attach to channels shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI55RLS
CI400HR
MCR1
MCR1
1"
1"
Cast Iron
Ductile Iron
CI55RLW
MCR112
1-1/2"
Cast Iron
Cast Iron Left Channel
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
Attach to laterals shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
>>
>>
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI75LCS
MCR1
1"
Cast Iron
CI401HL
MCR1
CI75LCW
MCR112
1"
Ductile Iron
1-1/2"
Cast Iron
Cast Iron Left Lateral
>>
>>
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
Attach to channels shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI55LLS
CI400HL
MCR1
MCR1
1"
Cast Iron
1"
Ductile Iron
CI55LLW
MCR112
1-1/2"
Cast Iron
Cast Iron Square Terminal End
Length: 3-1/2"
Overall Width: 2-1/8"
>>
ITEM#
HANDRAIL
WIDTH
WEIGHT
CI7053
MCR1
1-19/32"
1 lb.
.png)
Cast Iron Volute Handrail End
For straight or angled runs
>>
ITEM#
HANDRAIL
WIDTH
CHANNEL
CI4X
MCR1
CI4X112
MCR112
1-19/32"
1"
1-1/2"
2-1/8"
Steel Curled Handrail End
For straight or angled runs
Length: 5-7/8"
Height 11-12/16"
>>
>>
ITEM#
HANDRAIL
WIDTH
WEIGHT
SF81213
SF81212
MCR1
MCR112
1-19/32"
2-1/8"
3 lbs.
3.9 lbs.
Steel Handrail End Pieces
.png)
ITEM#
SF1151
Use with Handrail
SF1141
.png)
ITEM#
SF1152
Use with Handrail
SF1142
.png)
ITEM#
SF114B14
Use with Handrail
SF114A3
.png)
ITEM#
SF114B13
Use with Handrail
SF114A3
ITEM#
SF114B4
Use with Handrail
SF1144
ITEM#
SF114B8
Use with Handrail
SF1148
ITEM#
SF114B5
Use with Handrail
SF1145
ITEM#
SF1153
Use with Handrail
SF1142
ITEM#
SF1154
Use with Handrail
SF1141
.png)
ITEM#
SF11610
.png)
Use with Handrail
SF1145
ITEM#
SF11613
Use with Handrail
SF1148
ITEM#
SF1169
Use with Handrail
SF1144
Cast Iron
Lamb's Tongue Handrail End
For Straight Runs
ITEM#
HANDRAIL
CHANNEL
WIDTH
CI5
MCR1
CI5112
MCR112
1"
1-19/32"
1-1/2"
2-1/8"
Steel
Lamb's Tongue Handrail End
For straight or angle runs
Length: 5-7/8"
Height:13-3/4"
>>
>>
ITEM#
HANDRAIL
WIDTH
WEIGHT
SF137741
MCR1
1-19/32"
3 lbs.
SF137740
MCR112
2-1/8"
3.8 lbs.
90 Degree Bend Handrail
ITEM#
SF11625
Wt. 3.7 lbs
Matches SF1144
ITEM#
Wt. 3.7 lbs
SF11626
Matches SF1145
ITEM#
Wt. 3.7 lbs
Matches SF1148
SF11629
Steel Handrail
Mtl 2 9/32" x 9/16"
L 78 3/4"
Forged
ITEM#
SF1141
.png)
Forged
Mtl 2 9/32" x 9/16"
L 78 3/4"
ITEM#
SF1142
.png)
Mtl 1 7/8" x 5/8"
L 10' Approx
ITEM#
SF114A3
Mtl 1 9/16" x 5/16"
L 10' Approx
ITEM#
SF1144
Mtl 1 9/16" x 5/16"
L 10' Approx
ITEM#
SF1148
Mtl 1 9/16" x 5/16"
L 10' Approx
ITEM#
SF1145
Mtl 1 3/16" x 5/16"
L 10' Approx
ITEM#
SF1149
.png)
For Use with Molded Cover Rail & Tubular Handrail
Height: 3-3/4"
Width: 2-1/2"
>>
>>
ITEM#
CI654
Cast Iron Straight
Height: 4-3/8"
Width: 1-3/4"
Length: 2-5/8"
>>
>>
>>
ITEM#
CI902
Height: 1"
Width: 1-3/4"
Length: 2-1/8"
Rail End Plug
>>
>>
>>
ITEM#
CI7058
Steel Tubular Handrail
>>
>>
Conforms to conventional 1-3/4" wide molded cover rail combined w/ 1" channel
1" H x 1-3/4" W x 20 ft L
ITEM#
MCRMTH1420
>>
>>
>>
Cast Iron Volute
Height: 2-1/2"
Width: 1-3/4"
Length: 3"
ITEM#
CI900
Cast Iron Beveled
Height: 3-1/4"
Width: 1-3/4"
Length: 3-1/2"
>>
>>
>>
ITEM#
CI901
HANDRAIL BRACKETS

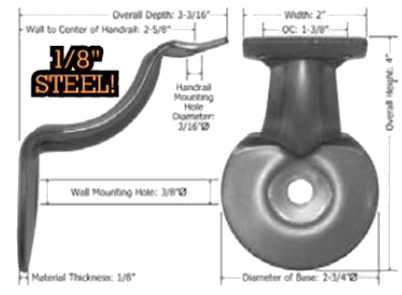

Steel Bracket
Stamped from 1/8" steel
4" overall height
2-3/4" round base
3/8" wall mounting hole
Two 3/16" rail mounting holes
2-5/8" from wall to rail center
Use with round pipe handrail
>>
>>
>>
>>
>>
>>
>>
STEEL
ITEM#
SC35BRP

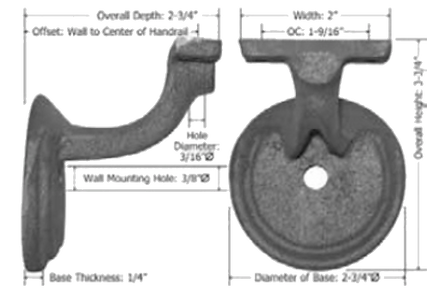

Cast Iron Bracket
2-3/4" round base
3-3/4" overall height
3/8" wall mounting hole
Two 3/16" rail mounting holes
2-3/8" from wall to rail center
Use with flat or square handrail
>>
>>
>>
>>
>>
>>
CAST IRON
ITEM#
CI3A
>>
>>
>>
>>
>>
>>
>>
>>

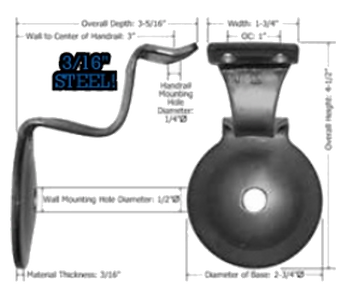

Steel Bracket
Heavy Duty
3/16" thick
2-3/4" round base
4-1/2" overall height
1/2" wall mounting hole
Two 1/4" rail mounting holes
3" from wall to rail center
Use with round or square handrail
STEEL
ITEM#
SC35B
STEEL
Mtl 1-5/16"
5/16 - 1/2"
ITEM#
CI14051
.png)
STEEL
Mtl 6-5/16"
x 3-23/32
ITEM#
CI94A1
.png)
STEEL
Mtl 3-5/32"
5/16" - 1/2"
ITEM#
