*ALL ITEMS ARE SUBJECT TO PRIOR SALE & STOCK AVAILABILITY
HANDRAIL COMPONENTS
Steel Handrails
Extra Wide Style
>>
>>
>>
>>
19 ft. approximate length
Wide series for 1-1/2" channel, flat or tube
Commercial mild steel
Weighs 42 lbs.
A. 2-1/8"
B: 3/4"
C: 1-1/4"
D:1-1/2"
ITEM#
MCR112
Steel Handrails
Standard Style
>>
>>
>>
>>
20 ft. approximate length
Fits 1" channel or tubing
Commercial mild steel
Weighs 25.4 lbs.
A. 1-19/32"
B: 7/16"
C: 1/2"
D:1"
ITEM#
MCR1

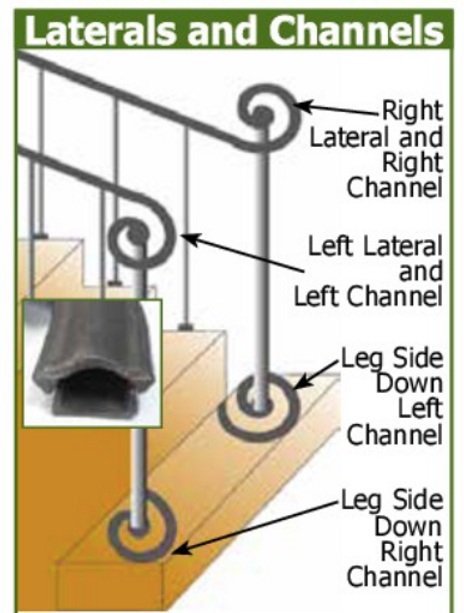

Cast Iron Right Channel
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
>>
>>
Attach to laterals shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI75RCS
MCR1
CI401HR
MCR1
CI75RCW
MCR112
1"
1"
1-1/2"
Cast Iron
Ductile Iron
Cast Iron
Cast Iron Right Lateral
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
>>
>>
Attach to channels shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI55RLS
CI400HR
MCR1
MCR1
1"
1"
Cast Iron
Ductile Iron
CI55RLW
MCR112
1-1/2"
Cast Iron
Cast Iron Left Channel
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
Attach to laterals shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
>>
>>
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI75LCS
MCR1
1"
Cast Iron
CI401HL
MCR1
CI75LCW
MCR112
1"
Ductile Iron
1-1/2"
Cast Iron
Cast Iron Left Lateral
>>
>>
For MCR1 Standard and MCR112 Extra-Wide Steel Handrails
Attach to channels shown below to create ends for handrail runs
Ductile iron channels can withstand up to 30 degree cold bend
ITEM#
HANDRAIL
CHANNEL
MATERIAL
CI55LLS
CI400HL
MCR1
MCR1
1"
Cast Iron
1"
Ductile Iron
CI55LLW
MCR112
1-1/2"
Cast Iron
Cast Iron Square Terminal End
Length: 3-1/2"
Overall Width: 2-1/8"
>>
ITEM#
HANDRAIL
WIDTH
WEIGHT
CI7053
MCR1
1-19/32"
1 lb.
.png)
Cast Iron Volute Handrail End
For straight or angled runs
>>
ITEM#
HANDRAIL
WIDTH
CHANNEL
CI4X
MCR1
CI4X112
MCR112
1-19/32"
1"
1-1/2"
2-1/8"
Steel Curled Handrail End
For straight or angled runs
Length: 5-7/8"
Height 11-12/16"
>>
>>
ITEM#
HANDRAIL
WIDTH
WEIGHT
SF81213
SF81212
MCR1
MCR112
1-19/32"
2-1/8"
3 lbs.
3.9 lbs.
Steel Handrail End Pieces
.png)
ITEM#
SF1151
Use with Handrail
SF1141
.png)
ITEM#
SF1152
Use with Handrail
SF1142
.png)
ITEM#
SF114B14
Use with Handrail
SF114A3
.png)
ITEM#
SF114B13
Use with Handrail
SF114A3
ITEM#
SF114B4
Use with Handrail
SF1144
ITEM#
SF114B8
Use with Handrail
SF1148
ITEM#
SF114B5
Use with Handrail
SF1145
ITEM#
SF1153
Use with Handrail
SF1142
ITEM#
SF1154
Use with Handrail
SF1141
.png)
ITEM#
SF11610
.png)
Use with Handrail
SF1145
ITEM#
SF11613
Use with Handrail
SF1148
ITEM#
SF1169
Use with Handrail
SF1144
Cast Iron
Lamb's Tongue Handrail End
For Straight Runs
ITEM#
HANDRAIL
CHANNEL
WIDTH
CI5
MCR1
CI5112
MCR112
1"
1-19/32"
1-1/2"
2-1/8"
Steel
Lamb's Tongue Handrail End
For straight or angle runs
Length: 5-7/8"
Height:13-3/4"
>>
>>
ITEM#
HANDRAIL
WIDTH
WEIGHT
SF137741
MCR1
1-19/32"
3 lbs.
SF137740
MCR112
2-1/8"
3.8 lbs.
90 Degree Bend Handrail
ITEM#
SF11625
Wt. 3.7 lbs
Matches SF1144
ITEM#
Wt. 3.7 lbs
SF11626
Matches SF1145
ITEM#
Wt. 3.7 lbs
Matches SF1148
SF11629
Steel Handrail
Mtl 2 9/32" x 9/16"
L 78 3/4"
Forged
ITEM#
SF1141
.png)
Forged
Mtl 2 9/32" x 9/16"
L 78 3/4"
ITEM#
SF1142
.png)
Mtl 1 7/8" x 5/8"
L 10' Approx
ITEM#
SF114A3
Mtl 1 9/16" x 5/16"
L 10' Approx
ITEM#
SF1144
Mtl 1 9/16" x 5/16"
L 10' Approx
ITEM#
SF1148
Mtl 1 9/16" x 5/16"
L 10' Approx
ITEM#
SF1145
Mtl 1 3/16" x 5/16"
L 10' Approx
ITEM#
SF1149
.png)
For Use with Molded Cover Rail & Tubular Handrail
Height: 3-3/4"
Width: 2-1/2"
>>
>>
ITEM#
CI654
Cast Iron Straight
Height: 4-3/8"
Width: 1-3/4"
Length: 2-5/8"
>>
>>
>>
ITEM#
CI902
Height: 1"
Width: 1-3/4"
Length: 2-1/8"
Rail End Plug
>>
>>
>>
ITEM#
CI7058
Steel Tubular Handrail
>>
>>
Conforms to conventional 1-3/4" wide molded cover rail combined w/ 1" channel
1" H x 1-3/4" W x 20 ft L
ITEM#
MCRMTH1420
>>
>>
>>
Cast Iron Volute
Height: 2-1/2"
Width: 1-3/4"
Length: 3"
ITEM#
CI900
Cast Iron Beveled
Height: 3-1/4"
Width: 1-3/4"
Length: 3-1/2"
>>
>>
>>
ITEM#
CI901
HANDRAIL BRACKETS
Steel Bracket
Stamped from 1/8" steel
4" overall height
2-3/4" round base
3/8" wall mounting hole
Two 3/16" rail mounting holes
2-5/8" from wall to rail center
Use with round pipe handrail
>>
>>
>>
>>
>>
>>
>>
STEEL
ITEM#
SC35BRP
Cast Iron Bracket
2-3/4" round base
3-3/4" overall height
3/8" wall mounting hole
Two 3/16" rail mounting holes
2-3/8" from wall to rail center
Use with flat or square handrail
>>
>>
>>
>>
>>
>>
CAST IRON
ITEM#
CI3A
>>
>>
>>
>>
>>
>>
>>
>>
Steel Bracket
Heavy Duty
3/16" thick
2-3/4" round base
4-1/2" overall height
1/2" wall mounting hole
Two 1/4" rail mounting holes
3" from wall to rail center
Use with round or square handrail
STEEL
ITEM#
SC35B
STEEL
Mtl 1-5/16"
5/16 - 1/2"
ITEM#
CI14051
.png)
STEEL
Mtl 6-5/16"
x 3-23/32
ITEM#
CI94A1
.png)
STEEL
Mtl 3-5/32"
5/16" - 1/2"
ITEM#
CI14052
.png)
STEEL
Mtl 3-5/32"
5/16" - 5/8"
ITEM#
CI14053
.png)
CAST IRON
3-3/4" x 3-1/4"
Extends 3-1/2" from wall
ITEM#
CI3HRB
.png)
CAST IRON
For square tubing
Extends 2-3/8" from wall
ITEM#
CI9002
Stamped Steel Handrail Bracket
Can be used with round or square handrails
Stamped from 1/8" steel
Offset: Wall to center of handrail
>>
>>
>>
ITEM#
OFFSET
SC35BRP
2-5/8"
Cast Iron
Handrail Bracket
For square handrails
Textured finish
Offset: Wall to center of handrail
>>
>>
>>
ITEM#
OFFSET
CI3A
CI3B
2-3/8"
3"
Extra Heavy Duty Stamped Steel Handrail Bracket
>>
>>
Stamped from 1/4" steel
Offset: Wall to center of handrail
ITEM#
OFFSET
SC1938
3"
SC1930
2-1/2"
Heavy Duty Stamped Steel Handrail Bracket
>>
>>
>>
Can be used with round or square handrails
Stamped from 3/16" black steel
Offset: Wall to center of handrail
ITEM#
OFFSET
SC35B
3"
Hammered Handrail Bracket
Three hole base plate
Material: 1/2" square, hammered
Rail Mounting Plate: 1" x 4" x 1/4" thick
Offset: Wall to Center of Handrail
>>
>>
>>
>>
STEEL
ITEM#
WALL OFFSET
BASE SIZE
CI14052
2-3/4"
3-1/4"
>>
>>
>>
>>
Round Bar
Handrail Bracket
Three hole base plate
Material: 5/8" round, distressed
Rail Mounting Plate: n/a
Offset: Wall to Center of Handrail
STEEL
ITEM#
WALL OFFSET
BASE SIZE
CI14053
2-3/4"
3-1/4"
Cast Iron Handrail Bracket
For 1-1/2" round tubing
Rail Mounting Plate: 1-3/8" x 2-3/4" x 1/8" thick
Offset: Wall to Center of Handrail
>>
>>
>>
CAST IRON
ITEM#
WALL OFFSET
BASE SIZE
3-3/4"
CI3HRB
3-1/2"
Ornamental Handrail Bracket
Two hole rosette base plate
Material: 1/2" round, decorative
Offset: Wall to Center of Handrail
>>
>>
>>
ITEM#
WALL OFFSET
BASE SIZE
CI94A1
3"
3-5/8"
CHANNEL
Pre-Punched Bar Channel
Punched using Structural Bar Channel
Stocked in
20 ft. Lengths
Custom Orders Available!
Forged Handrail Bracket
No base plate
Material: 1/2" square
Rail Mounting Plate: 1" x 4" x 1/4" thick
>>
>>
>>
ITEM#
WALL OFFSET
BASE SIZE
CI14051
2-7/8"
N/A
Pre-Punched Rollformed Channel
>>
>>
>>
>>
>>
Stocked in 20' lengths
Every hole exactly on center
Great for window gaurds and fences
NEW automated punching technique
Provide extra security for doors, window guards and fencing
1" x 1/2" x 1/8"
20 ft length
1" Rollformed Channel
>>
>>
1-1/2" Rollformed Channel
1-1/2" x 1/2" x 1/8"
20 ft length
>>
>>
2" Rollformed Channel
>>
>>
2" x 1" x 1/8"
20 ft length
Arched Gate Kits
>>
>>
>>
>>
>>
For a 40" wide walk gate
3 piece set for a 3 rail gate
Pre-punched rails on 5" centers for 1/2" square bar or tube to be
Use /1-1/2" tube for upright posts.
ITEM#
DESCRIPTION
GHARCH40
40" Arched Gate Kit
ITEM#
CHANNEL SIZE
HOLE SIZE
FITS PICKET
OPEN AREA
CENTER
Square Hole 1-1/2" x 3/4" x 1/8 Bar Channel
PBC11234412
1-1/2" x 3/4" x 1/8
PBC1123441212
PBC11234512
PBC11234612
PBC1123441258
PBC11234558
PBC11234434
PBC1123443434
PBC11234634
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
1-1/2" x 3/4" x 1/8
9/16"
9/16"
9/16"
9/16"
11/16"
11/16"
13/16"
13/16"
13/16"
1/2" Square
3-1/2"
1/2" Square
4"
1/2" Square
4-1/2"
1/2" Square
5-1/2"
5/8" Square
3-7/8"
5/8" Square
4-3/8"
3/4" Square
3-1/4"
3/4" Square
4"
3/4" Square
5-1/4"
4"
4-1/2"
5"
6"
4-1/2"
5"
4"
4-3/4"
6"
.png)
Square Hole 2" x 1" x 1/8" Bar Channel
ITEM#
CHANNEL SIZE
HOLE SIZE
FITS PICKET
OPEN AREA
CENTER
PBC2118458
PBC2118558
PBC2118434
PBC2118534
PBC2118634
PBC211851
PBC211861
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
11/16"
11/16"
13/16"
13/16"
13/16"
1-1/16"
1-1/16"
5/8" Square
3-3/8"
5/8" Square
4-3/8"
3/4" Square
3-1/4"
3/4" Square
3/4" Square
1" Square
1" Square
4-1/4"
5-1/4"
4"
5"
4"
5"
4"
5"
6"
5"
6"
Diamond Hole 1-1/2" x 1/2" x 1/8" Bar Channel
.png)
ITEM#
CHANNEL SIZE
HOLE SIZE
FITS PICKET
OPEN AREA
CENTER
PBC11241212DM
PBC11243458DM
PBC112534DM
1-1/2" x 1/2" x 1/8
1-1/2" x 1/2" x 1/8
1-1/2" x 1/2" x 1/8
9/16"
1/2" Diamond
11/16"
5/8" Diamond
13/16"
3/4" Diamond
3.8"
3.9"
4"
4-1/2"
4-3/4"
5"
Diamond Hole 2" x 1/2" x 1/8" Bar Channel
ITEM#
CHANNEL SIZE
HOLE SIZE
FITS PICKET
OPEN AREA
CENTER
.png)
PBC2534DM
PBC2634DM
PBC25141DM
PBC261DM
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
2" x 1" x 1/8"
3/4" Diamond
3/4" Diamond
1" Diamond
1" Diamond
13/16"
13/16"
1-1/16"
1-1/16"
4"
5"
3.8"
4.6"
5"
6"
5-1/4"
6"
Square Hole 1" x 1/2" x 1/8" Bar Channel
ITEM#
CHANNEL
HOLE
FITS PICKET
OPEN AREA
CENTER
PBC1004
PBC100412
PBC1005
1" x 1/2" x 1/8"
1" x 1/2" x 1/8"
1" x 1/2" x 1/8"
PBC1006
1" x 1/2" x 1/8"
9/16"
9/16"
9/16"
9/16"
1/2" Square
1/2" Square
1/2" Square
1/2" Square
4"
3-1/2"
4-1/2"
5-1/2"
4"
4-1/2"
5"
6"
Round Hole 1" Bar Channel
ITEM#
CHANNEL
HOLE
FITS PICKET
OPEN AREA
CENTER
.png)
PBC1004RD
1" x 1/2" x 1/8"
PBC100412RD
1" x 1/2" x 1/8"
PBC1005RD
1" x 1/2" x 1/8"
PBC1006RD
1" x 1/2" x 1/8"
9/16"
9/16"
9/16"
9/16"
1/2" Round
1/2" Round
1/2" Round
1/2" Round
3-1/2"
4"
4-1/2"
5-1/2"
4"
4-1/2"
5"
6"
Square Hole 1-1/2" x 1/2" x 1/8" Bar Channel
HOLE
ITEM#
CHANNEL
FITS PICKET
OPEN AREA
CENTER
.png)
PBC1120412
1-1/2" x 1/2" x 1/8"
PBC11241212
1-1/2" x 1/2" x 1/8"
PBC1120512
1-1/2" x 1/2" x 1/8"
PBC1120612
1-1/2" x 1/2" x 1/8"
PBC11241258
1-1/2" x 1/2" x 1/8"
1-1/2" x 1/2" x 1/8"
PBC1120558
PBC1120434
1-1/2" x 1/2" x 1/8"
PBC11243434
1-1/2" x 1/2" x 1/8"
PBC1120634
1-1/2" x 1/2" x 1/8"
9/16"
9/16"
9/16"
9/16"
11/16"
11/16"
11/16"
11/16"
11/16"
1/2" Square
1/2" Square
1/2" Square
1/2" Square
5/8" Square
5/8" Square
3/4" Square
3/4" Square
3/4" Square
3-1/2"
4"
4-1/2"
5-1/2"
3-7/8"
4-3/8"
3-1/4"
4"
5-1/4"
4"
4-1/2"
5"
6"
4-1/2"
5"
4"
4-3/4"
6"
Pre-Punched Rollformed Channel
Available Punched or
Unpunched!
Economically Priced
If shipping we offer a FREE service to cut channel into smaller sections that are more manageable
Square Hole 1-1/2" x 1/2" x 1/8" Rollformed Channel
ITEM#
CHANNEL
HOLE
FITS PICKET
OPEN AREA
CENTER
PBCR1120412
1-1/2" x 1/2" x 1/8"
9/16"
PBCR1120512
1-1/2" x 1/2" x 1/8"
9/16"
1-1/2" x 1/2" x 1/8"
PBCR1120612
9/16"
1/2" Square
1/2" Square
1/2" Square
3-1/2"
4-1/2"
5-1/2"
4"
5"
6"
PBCR1120412
1-1/2" x 1/2" x 1/8"
9/16"
PBCR1120512
1-1/2" x 1/2" x 1/8"
9/16"
1-1/2" x 1/2" x 1/8"
PBCR1120612
9/16"
1/2" Square
1/2" Square
1/2" Square
3-1/2"
4-1/2"
5-1/2"
4"
5"
6"
Square Hole 1" x 1/2" x 1/8" Rollformed Channel
.png)
CENTER
ITEM#
CHANNEL
HOLE
FITS PICKET
OPEN AREA
PBCR1004
1" x 1/2" x 1/8"
9/16"
PBCR100412
1" x 1/2" x 1/8"
9/16"
PBCR1005
1" x 1/2" x 1/8"
9/16"
PBCR1006
1" x 1/2" x 1/8"
9/16"
1/2" Square
1/2" Square
1/2" Square
1/2" Square
3-1/2"
4"
4-1/2"
5-1/2"
4"
4-1/2"
5"
6"
Unpunched Rollformed Channel
>>
>>
Used for flush top or bottom
20 foot length
ITEM#
CHANNEL
PBCR1000
PBCR1120000
1" x 1/2" x 1/8"
PBCR2000
1-1/2" x 1/2" x 1/8"
2" x 1" x 1/8"
Square Hole 2" x 1" x 1/8"
Rollformed Channel
ITEM#
CHANNEL
HOLE
FITS PICKET
OPEN AREA
CENTER
2" x 1" x 1/8"
PBCR2118434
2" x 1" x 1/8"
PBCR2118534
2" x 1" x 1/8"
PBCR2118634
13/16"
13/16"
13/16"
3/4" Square
3/4" Square
3/4" Square
3-1/4"
4-1/4"
5-1/4"
4"
5"
6"
.png)
Fabrication Ease: Slide pickets through the punched holes and tack-weld. Attach to posts and your fence is built
bottom of page
